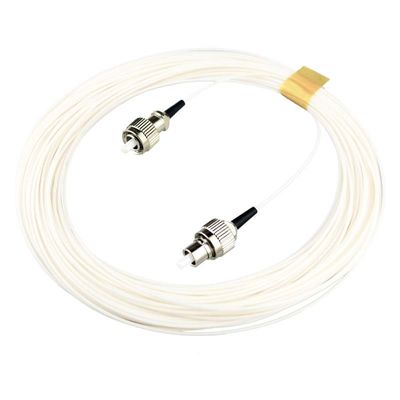

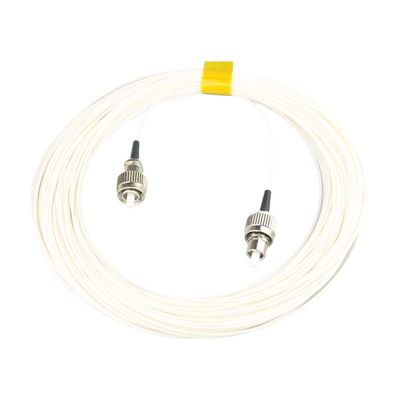

Anti-reflective coating patch cord jumper 405-532 nm Customize any wavelength

Plaats van herkomst	China
Merknaam	YOGEL
Certificering	ISO9000
Min. bestelaantal	1
Prijs	negotiate
Verpakking Details	Karton doos
Betalingscondities	L/C, D/A, T/T, Western Union, MoneyGram
Levering vermogen	100 stuks per maand

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

Productdetails

Invoegverlies	≤0,3dB	Materiaal van vezeljassen	PVC/LSZH/OFNP
Kabellengte	1 meter (optioneel)	Type connector	FC/APC (Senko, SG Optioneel)
Vezeldiameter	9/125μm	Bedrijfstemperatuur	-40 ℃ tot +85 ℃
Garantie	1 jaar	Smalle sleutel	2,0 mm
Vezeltype	Single-mode	Golflengte	405-532 nm Pas elke golflengte aan
Vezelselling	Simplex/duplex	Vezeljackdiameter	2.0/3,0 mm

Laat een bericht achter

Productomschrijving

Anti-reflective coating patch cord jumper 405-532 nm Customize any wavelength

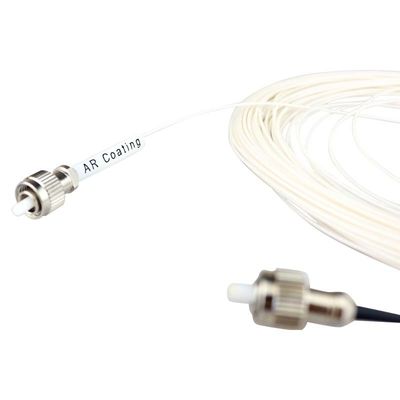

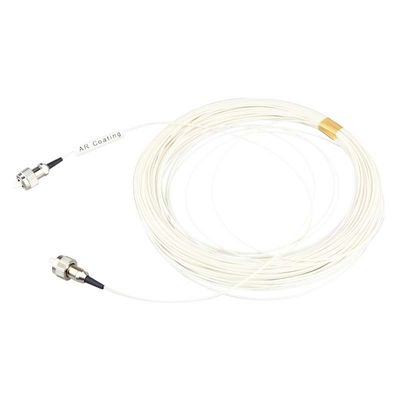

We offer fiber optic patch cords with an FC/PC or FC/APC connector coated with a permeation enhancement film on one end and an uncoated FC/PC or FC/APC

connector on the other end. Transparency enhancement coatings are designed to reduce the reflection ratio of

when launching a beam from a fiber into free space or coupling a free space beam into a fiber. Depending on the patch cord, the average reflectance of the coated connector is less than 1%, less than 0.75%

or less than 0.5% over the transmissive film frequency range (click on the transmissive film coated reflectance graph below for more information). Each patch cable is supplied with Ø3mm Kevlar reinforced

split tubing. Patchcords are grouped below according to the optimal performance range, with bare fiber overlapping the specified operating wavelength range of the permeation enhancement film.

Feature:

Low insertion loss
High repeatability and high stability
MPO/MTP polarity can be arbitrarily matched
Complies with GR326 or IEC61300-2 standards

Application:

Fiber-to-free-space coupling

When light is incident from a fiber into free space, such as when using our fiber collimators and FiberPort collimator/couplers, the return loss

(loss of signal reflecting back to the light source at the glass-air interface at the end of the fiber) will be more severe than the equivalent fiber-to-fiber coupling

method. The return loss on FC/PC connectors can be reduced by ~8 to 10 dB by coating the fiber ends with a permeation enhancing film

and by ~2 to 5 dB on FC/APC connectors. For example, in testing, a typical return loss for a

patch cord with an uncoated connector was ~15 dB (3.16%), while the same patch cord with a permeation-enhanced connector had a return loss of ~24 dB

(0.40%). Transmission enhancement connectors also improve the transmittance of free-space beams when coupled into optical fibers. For more test data,

see the Experimental Observations tab.

Specification:

Item	AR Coating connector	No coating connector	AR Coating
P1–305AR–2	FC/PC	FC/PC (30126C3)	<0.5%
			for 500 – 800 nm
P5–305AR–2	FC/PC	FC/APC(30126 A3)
P4–305AR–2	FC/APC(30126 A3)	FC/PC (30126C3)
P3–305AR–2	FC/APC(30126 A3)	FC/APC(30126 A3)
