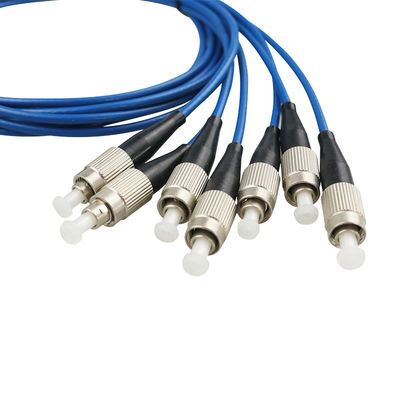

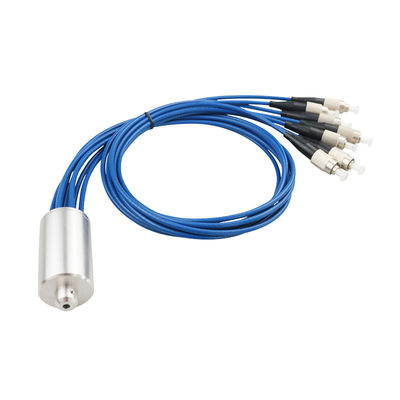

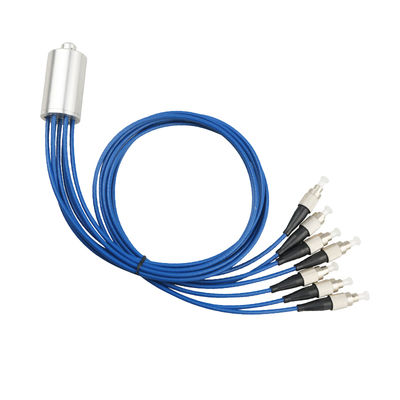

FC/PC-FC/PC Fiber Bundles MM Round to SX fan-out bundle cables

  • FC/PC-FC/PC Fiber Bundles MM Round to SX fan-out bundle cables
  • FC/PC-FC/PC Fiber Bundles MM Round to SX fan-out bundle cables
  • FC/PC-FC/PC Fiber Bundles MM Round to SX fan-out bundle cables
Place of Origin Shanghai
Merknaam YOGEL
Certificering ISO9001
Model Number LC patch cord
Minimum Order Quantity 1
Packaging Details Standard box +Carton
Payment Terms L/C, T/T, Western Union
Supply Ability 50000pcs/Month

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Fiber type Simplex and Duplex Application FTTH FTTB FTTX Network
Connector type LC/UPC Length 3m/customized
Insertion loss ≤0.3dB Product name Fiber Optic Patch Cord
Material PVC/LSZH Color blue
Fber SM MM PM
Laat een bericht achter
Productomschrijving

Description



Simplex cable assemblies are offered with a variety of combinations. Connectors include SC, FC, ST and



LC. 3.0 mm, 2.0 mm, 1.6 mm, 1.2mm and 900μm simplex cables in PVC, OFNR, LSZH, OFNP jackets



and G.652D, G. 657A2 fiber types are available.



Features

*Low insertion loss & High return loss



*Connectors compliant with Telcordia GR-326



*Cable compliant with Telcordia GR-409



*Mechanical performance compliant with IEC 61754-4



*RoHS compliant - Riser, Plenum, and LSZH rated cables available



Applications

*Building interconnections (campus LAN)



*Connector end in optical distribution boxes and termination boxes



*Trunk lines direct to telecommunications closet



*Cross-connect in outdoor closet



*Distribution connect in central office ODF / MDF



*Fiber patch panels within communications closets



*Links between Internet electronic equipment (SFP module, Switch, OLT, ONU etc.), Cable TV optical



 equipment (Transmitter, EDFA, Node, etc.) and fiber patch panels



Specifications



Item Parameter
Single Mode Multi-Mode
PC UPC APC PC
Test wavelength 1310/1550nm 850/1300nm
Insertion loss Typ. ≤0.15 dB, Max. ≤0.30 dB
Return Loss ≥45 dB ≥50 dB ≥60 dB ≥35dB
Repeatability ≤0.10 dB
Changeability ≤0.20 dB
Durability (1000 Mating) ≤0.20 dB
Operation temperature -40 ~ +80℃
Storage temperature -40 ~ +85℃
Connector end SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cable jacket PVC, OFNR, LSZH, OFNP
Cable diameter 3.0mm, 2.0mm, 1.6mm, 1.2mm, 0.9mm
Fiber count Simplex
Fiber type

Single Mode: G. 652D, G. 655, G. 657A2, etc.

Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125)
Cable length 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc.
Fiber brand Corning, Sumitomo, Fujikura, YOFC, TFO
Fire resistant IEC 60794-2-30
Standards Compliant ROHS, IEC, GR-326



Order Information



Connector End A - Connector End B,



Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length



Example:

SC/UPC-SC/APC,

LSZH, 3.0mm, Simplex, G.657A2, 5 meters

Indoor patch cord
